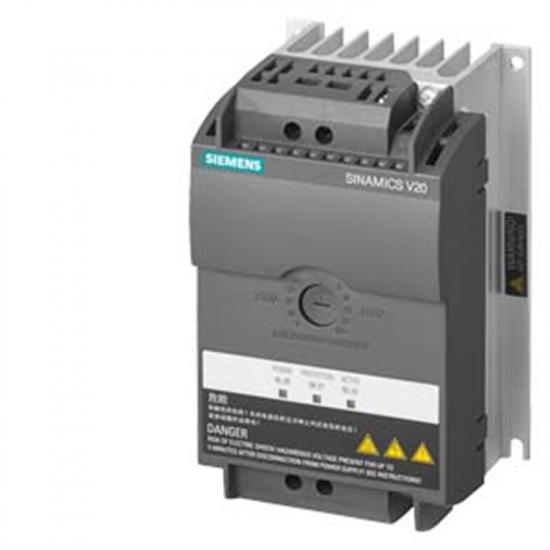

Siemens 6SL3201-2AD20-8VA0 SINAMICS V20 brake module

Siemens 6SL3201-2AD20-8VA0

Product Description:

Model: 6SL3201-2AD20-8VA0

Brand: Siemens

Applicable to: SINAMICS V20 series frequency converters

It is an economical, efficient, and easy-to-use basic frequency converter brake module

Voltage and power range:

Voltage range: Supports 1AC 230V/3AC 400V

Power range: suitable for equipment ranging from 0.12 kW to 15 kW

Maximum rated power: up to 3 kW, 8 A on a 230 V frequency converter; Up to 5.5 kW, 7 A on a 400 V frequency converter

Technical characteristics:

Brake chopper duty cycle, up to 100%

Cable length: maximum 1 meter from the braking unit to the frequency converter; The maximum distance from the braking unit to the braking resistor is 10 meters

Installation method: Cabinet board installation (using 4 x M4 screws)

Protection functions: including short-circuit protection and overheating protection

External dimensions: width 90 mm, height 150 mm, depth 88 mm

Weight: approximately 0.71 kg

Applicable scope:

Suitable for basic frequency conversion applications of simple fans, pumps, compressors, conveyor belts, and processing or production processes

Can be excellently applied to spindle applications of simple machine tools, such as grinders and lathes

Installation and connection:

When installing the energy consumption braking module, the opening groove of the module must always face upwards to ensure sufficient heat dissipation

V20 frequency converters with external dimensions ranging from AA to C require an external brake module, while D and E models have an internal brake module

V20 frequency converters with external dimensions ranging from FSAA to FSC require specific parameters to be set (such as P1240=0) to enable the braking resistor function
