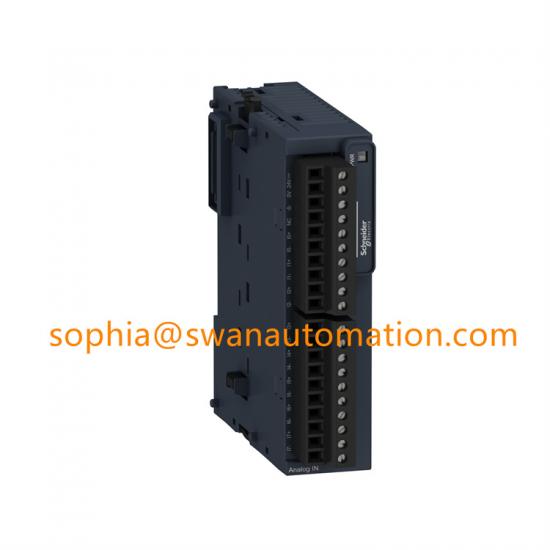

Schneider Modicon TM3TI8T analog input module

Schneider TM3TI8T analog input module, Modicon TM3, 8 temperature inputs, screw, 24V DC

weigh:0.11kg

dimension: 90*70*23.6mm

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 8 inputs with 16bit and 15bit + sign resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 30mA at 24V DC via external supply, 45mA/40mA at 5V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg.

Application areas:
The company's products are widely used in CNC machinery metallurgy, petroleum and natural gas, petrochemical, chemical, paper printing, textile printing and dyeing, machinery, electronics manufacturing, automobile manufacturing, tobacco, plastic machinery, electricity, water conservancy, water treatment/environmental protection, municipal engineering, boilers Heating, energy, transmission and distribution, etc.

Shipping & Payment:

1.Shipping will be made via DHL,EMS,FedEx or USP .
If you would like to use your shipping account number please contact us with that information.
2.We Ship after receiving payment from the buyer.
3. All the goods will be tested before shipment ,we will track the goods until you received.
4.Payment: T/T Western Union

5.New original with one year warranty
