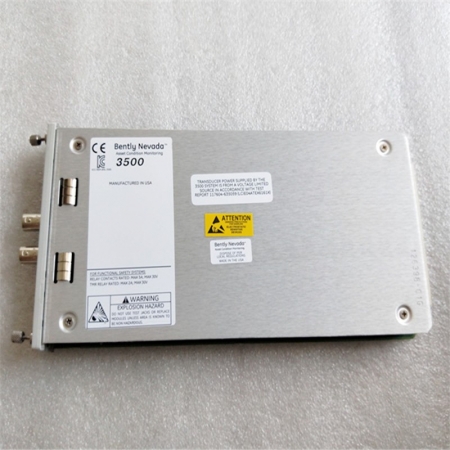

View MoreBently Nevada 3500/22-01-01-01 Transient Data Interface Module
3500/22M Transient Data Interface Module
288055-01 Standard Transient Data Interface Module with USB cable
146031-01 10Base-T/100Base-TX I/O Module
146031-02 100Base-FX (Fiber Optic) I/O Module
Item NO.:
3500/22-01-01-01Order(MOQ):
1Payment:
T/TProduct Origin:
USAColor:
WhiteShipping Port:
HKLead Time:
3 days after paymentBently Nevada 3500/22-01-01-01 Transient Data Interface Module
Contact: shay
Phone: +86-15327455845
WhatsApp: +86-15327455845
Skype: +86-15327455845
Email: shay@swanautomation.com
QQ: 3030553173
Wuhan Xiatong Automation Equipment Co., Ltd.
Model Number
3500/22-01-01-01
Series
3500
Type
Interface Module
Brand
Bently Nevada
Place of Origin
USA
Quality
100% New Original
Stock
In stock
Delivery time
1-3 Days after payment
Packing
Original packing with factory sealed
Size
30*20*20cm
Weight
2kg
After-sales Service
Have
Warranty
1 year
Shipping term
DHL / FEDEX/ EMS /UPS/TNT
Shipping time
5~7 working days
MOQ
1 Piece
Payment Term
T/T Western Union

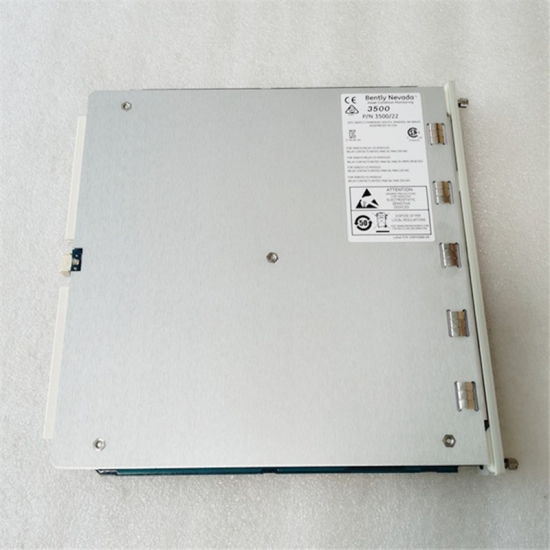

3500/22M Transient Data Interface Module
The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information.
Static data capture capability is standard with the TDI. However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient data as well. The TDI incorporates the communication processor function within the 3500 rack. Although the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system for automatic machinery protection. Every 3500 rack requires one TDI or RIM, which always occupies Slot 1 (next to the power supplies)
Spares
288055-01 Standard Transient Data Interface Module with USB cable
123M4610 10 foot A to B USB cable
146031-01 10Base-T/100Base-TX I/O Module
146031-02 100Base-FX (Fiber Optic) I/O Module
161580 3500/22M TDI Operation and Maintenance Manual
164466 Network Accessories Datasheet
00580441 Connector header, internal termination, 3-position, green
00580436 Connector header, internal termination, 6-position, green
111M5777 Connector header, internal termination, 2-position, green
Bently Nevada 3500 system SIS module
For three-module redundancy (TMR) applications, the 3500 system requires RIM in the form of TMR. In addition to all standard RIM functions, TMR RIM also has a "monitor channel comparison" function. The 3500 TMR configuration performs monitoring voting according to the settings specified in the monitoring options. In this way, TMR RIM will continuously compare the output of three mutually redundant monitors. If TMR RIM detects that the information of one monitor is not equal to the information of another monitor (within a set percentage), it will mark the monitor as an error and generate an event in the system event list.
The 3500 System provides continuous, online monitoring suitable for machinery protection applications, and is designed to meet the requirements of the American Petroleum Institute’s API 670 standard for such systems. The system’s modular rack-based design includes the following components:
• 3500/05 Instrument Rack (required)

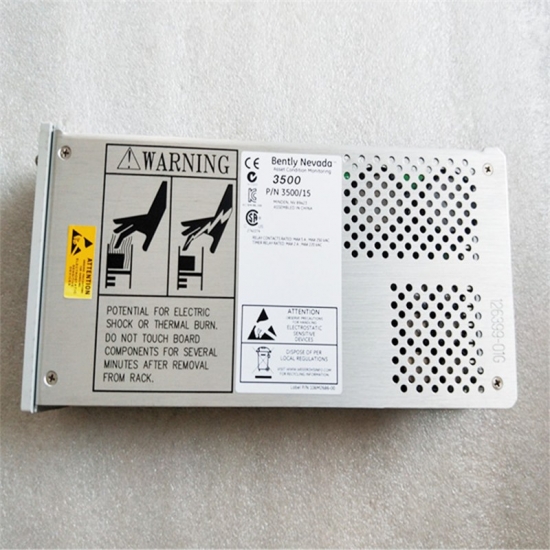

• One or two 3500/15 Power Supplies (required)
• 3500/22M Transient Data Interface (TDI) Module (required)
• One or more 3500/XX Monitor Modules (required)

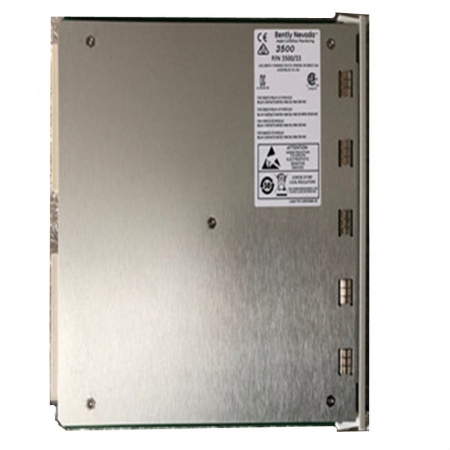

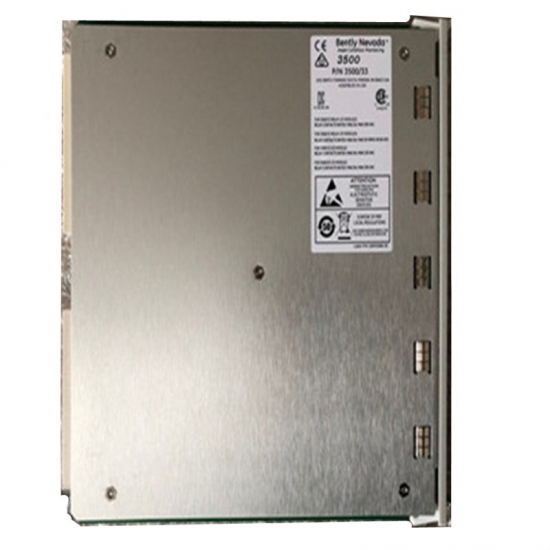

• One or more 3500/32M (4-channel) or 3500/33 (16-channel) Relay Modules (optional)

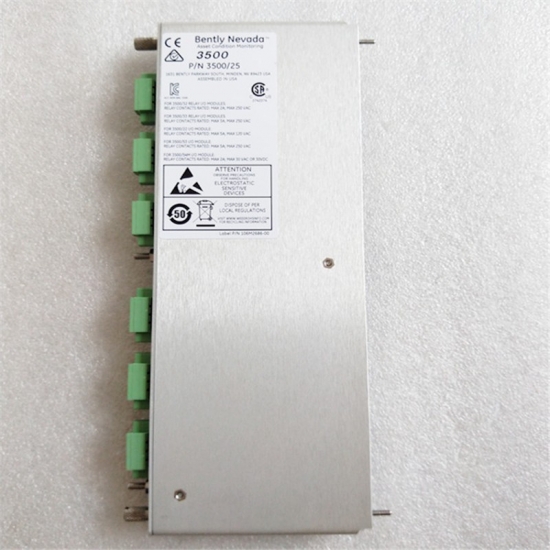

• One or two 3500/25 Keyphasor* Modules (optional)
• One or more 3500/92 Communication Gateway Modules (optional)
• Input/Output (I/O) Modules (required)
• 3500/94M VGA Display (optional)
• Internal or external intrinsic safety barriers, or galvanic isolators for hazardous area installations(optional)
• 3500 System Configuration Software (required)
