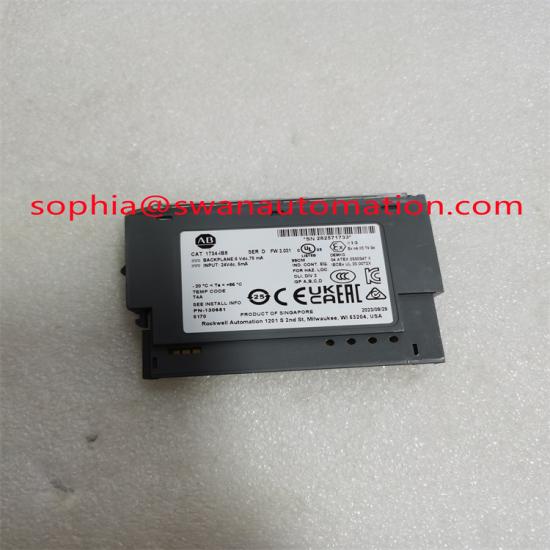

Allen-Bradley 1734-IB8 Digital Input Module

Allen-Bradley 1734-IB8 Digital Input Module

Brand: Allen Bradley (Rockwell Automation)

Model: 1734-IB8

Type: POINT I/O Input Module

Functional Features

Discrete input channels: 1734-IB8 has 8 discrete current input channels, each of which can independently process input signals.

Signal voltage: This module accepts a nominal signal voltage of 24VDC, with a conduction voltage range of 10VDC-28.8VDC and a conduction current range of 2mA-5mA.

Compatibility: Compatible with any POINT I/O communication adapter and supports distributed I/O architecture. Meanwhile, the C-series 1734-IB8 module is also compatible with DeviceNet and ProfiBus communication adapters.

Filtering and indicator lights: Equipped with a fixed hardware input filter of 0.5 ms and a user configurable filter of 0ms-63 ms. The module is equipped with LED status indicator lights, providing feedback information on the operating status of each channel. Each input channel has an LED status indicator light and a network status indicator light.

Installation and configuration: Installation requires a 1734-TB or 1734-TBS wiring base assembly, equipped with locking devices, side entry writable labels, detachable terminal boards, and other accessories. When installing onto the corresponding terminal base, the required button switch alignment position is 1.

technical specifications

Power dissipation: approximately 1.6 watts

Dimensions: Height 56mm, Width 12mm, Length 75.5mm

Weight: Approximately 32.3 grams

Working temperature: It can operate within a temperature range of -21 to 55 degrees Celsius, with a maximum ambient air temperature of 55 degrees Celsius

Isolation voltage: 50V DC, tested for 60 seconds at maximum voltage of 2500V DC

application area

The 1734-IB8 module is widely used in the field of industrial automation, especially in situations where discrete input signals need to be processed, such as sensor signal input on production lines, robot control, etc

Technical Specifications
