ABB CI 930F 3BDH001010R0002 AC 900F PROFIBUS DP Master Module

ABB CI 930F  3BDH001010R0002 AC 900F PROFIBUS DP Master Module

The CI 930F PROFIBUS DP Master Module enable communication over the PROFIBUS DP fieldbus. The interfaces can be mounted to the slots on the left side of the CPU module PM 901F, PM 902F or PM 904F. The CI 930F supports PROFIBUS line redundancy. It comes with two D-Sub terminals (9-pole), one each for line A/B. Each PROFIBUS module allows the connection of a PROFIBUS line of maximum of 126 slaves. Each of these slaves can be modular.


  • Item NO.:

    CI 930F
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    Sweden
  • Color:

    White
  • Shipping Port:

    HK
  • Lead Time:

    3 days after payment
  • Product Detail

ABB CI 930F  3BDH001010R0002 AC 900F PROFIBUS DP Master Module



Contact: shay

Phone: +86-15327455845

WhatsApp: +86-15327455845

Skype: +86-15327455845

Email:  shay@swanautomation.com

QQ: 3030553173

Wuhan Xiatong Automation Equipment Co., Ltd.



Technical Information

P/N

CI 930F  3BDH001010R0002

Categories

AC 900F

Brand

ABB

Place of Origin

Sweden

Technical Information

The communication interfaces CI 930F provides two on-board

PROFIBUS interfaces A/B for increased availability

regarding PROFIBUS communication.

Product Type

DP Master Module

Customs Tariff Number

85389091

Dimensions

30*20*20cm

N.W

1kg

Packing

Original Packing with factory sealed

RoHS Status

Following EU Directive 2011/65/EU

Quality

100% New Original

Stock

In Stock

Delivery time

1-3 Days after Payment

After-sales Service

Have

Warranty

1 year

Shipping term

DHL / FEDEX/ EMS /UPS/TNT

MOQ

1 piece

Payment Term

T/T or Western Union

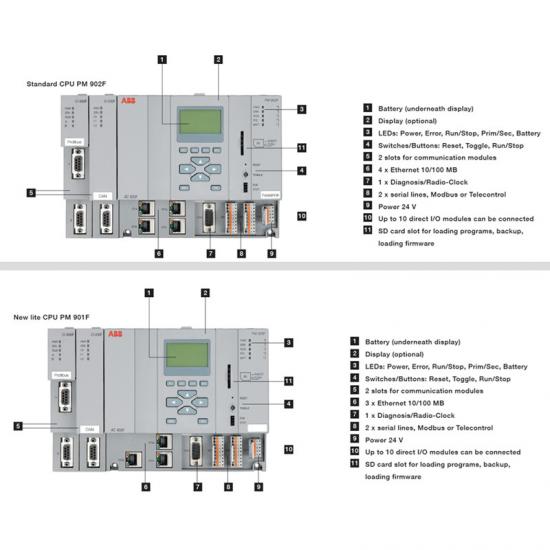

"The Central Processing Unit (CPU) module is equipped with a high-performance processor for multitasking and executing fast loop cycle times. It offers expanded flexibility via a pluggable SD card, redundancy options for high availability and powers for around 1,500 I/Os. It comes with four on-board 100 Mbit/s Ethernet network connection used for communication between controllers, operator stations and engineering tool. Two serial line interfaces interfaces can be used for Modbus communication and/or Telecontrol. A third serial interface is reserved for diagnosis purpose and radio clock connection.The CPU has 24 MB of memory of which 8 MB are battery backed up. For demanding applications, eight cyclic and priority driven tasks with adjustable cycle time can be configured, as
well as a cyclic PLC type task which runs as fast as possible. The additional available display unit TD 951F shows status and diagnostic information directly at the module. Operating modes can be modified by switches on the front panel. The controller can be blocked for downloads of application and firmware to enhance security. The status, if
the controller is locked or unlocked, is shown on the display. S700 I/O modules can be directly plugged to the I/O bus interface on the right side of the CPU module. A maximum of 10 direct I/O modules can be connected to one controller. The CPU and the local S700 I/O modules communicate very fast. I/O scan times of 2 ms are possible. Short circuit and line break detection is realized for each channel. Two coupler bus slots on the left side can be assigned with fieldbus interface modules. The PM 902F can be equipped with a maximum of two PROFIBUS modules. 3rd party I/O‘s can be connected via a MODBUS ASCII / RTU, IEC 60870-5-101 Telecontrol protocol or via PROFIBUS. "

Our products are widely used in CNC machinery, metallurgy, petroleum and natural gas, petrochemical, chemical, paper printing, textile printing and dyeing, machinery, electronic manufacturing, automobile manufacturing, tobacco, plastic machinery, electric power, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, transmission and distribution industries.

WARRANTY
Upstate Products Wholesale provides a 1 year warranty on this item. Warranty begins on date of purchase.


PACKAGING&DELIVERY
Packaging details: original packing factory sealed
Delivery details: 1~3 days after payment


SHIPPING
1.For the in stock items, we will ship to you within 3 days after received payment
2.We can shipping all over the world via DHL,UPS,FEDEX,TNT and EMS.
3.If you have shipping agent please tell us before shipment.
4.We will packing the parts with strong box, if you havy any special needs, please notify to us.
5.We usually ship up to before 4:30 PM, after shipment we will sent the tracking number to you. It will takes 7~15 days to received the packages.
6.When you received the package, please email to us.
7.Please include all information when asking for cost on shipping, or it will slow the process down.
1.What is your zip code?
2.What is your company name if  you have one and your name?
3.What is your phone number and extension if you have one?
