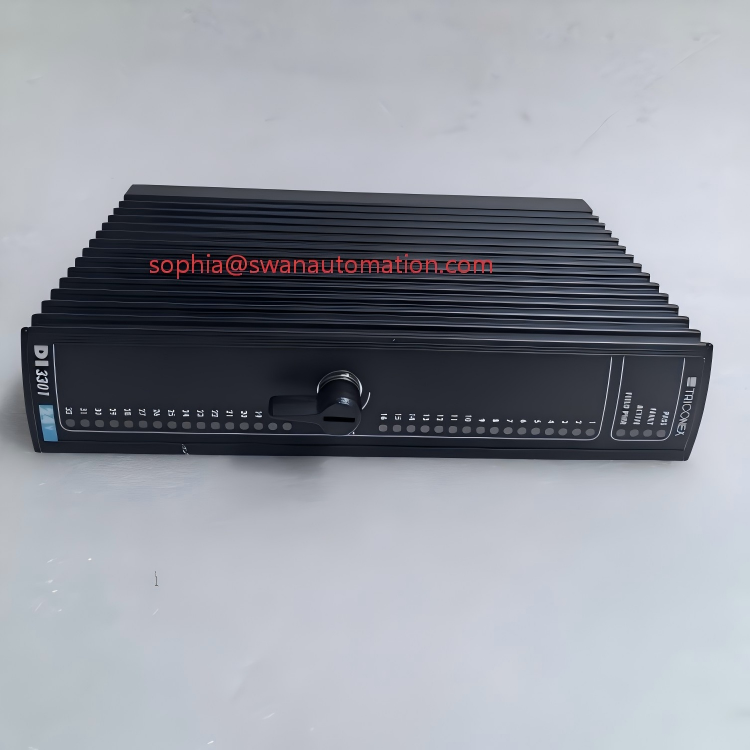

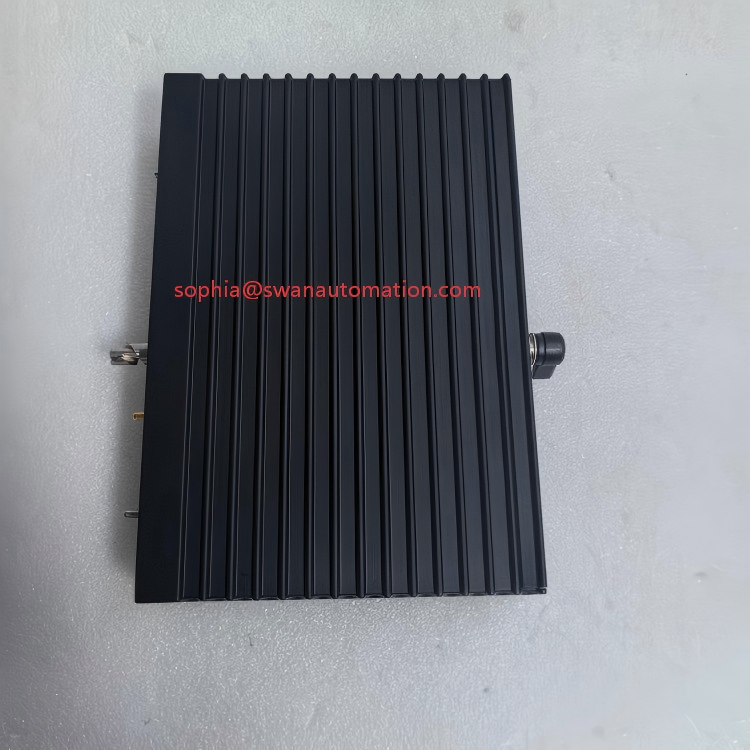

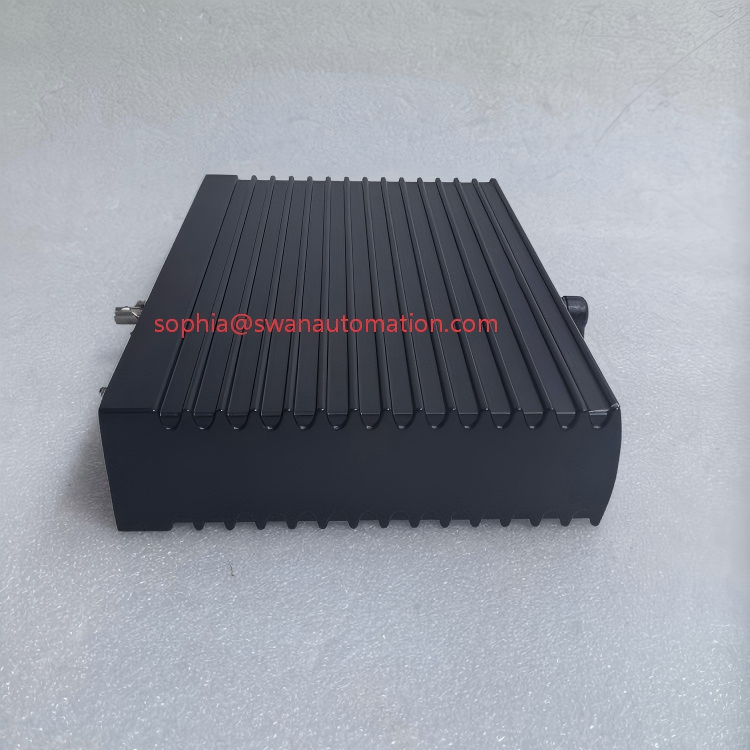

TRICONEX DI3301 Digital Input Module new in stock

TRICONEX DI3301 is a 32-bit digital input module used to collect digital signals (switch values, dry contacts, TTL signals, etc.) from the field and transmit them to the main processor (control unit) for logical judgment and safety interlock operations

Input points
32 points (isolated separately for each channel)
input type
Dry contact or active input (DC signal)
Input voltage range
0-32 VDC
communication method
Triple redundant architecture (each input point is independently collected by three channels)
Module redundancy
Supports online hot plugging and triple redundancy support
Module diagnostic function
Support real-time detection of open circuit, short circuit, self diagnosis, overvoltage, etc
Communicate with the main controller
Communicate with Tricon main processor through I/O bus
Installation method
Insert Tricon rack (standard 16 slot system)
module size
