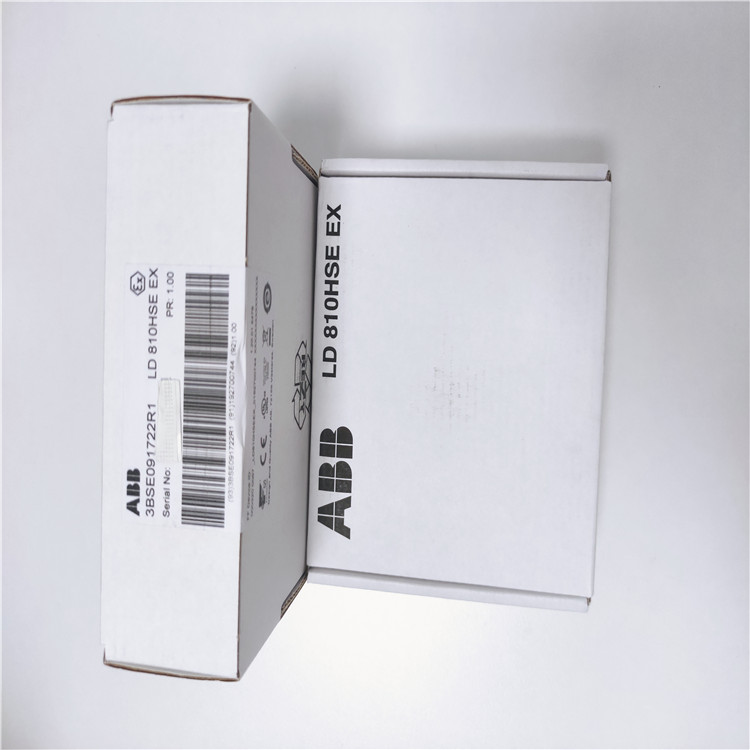

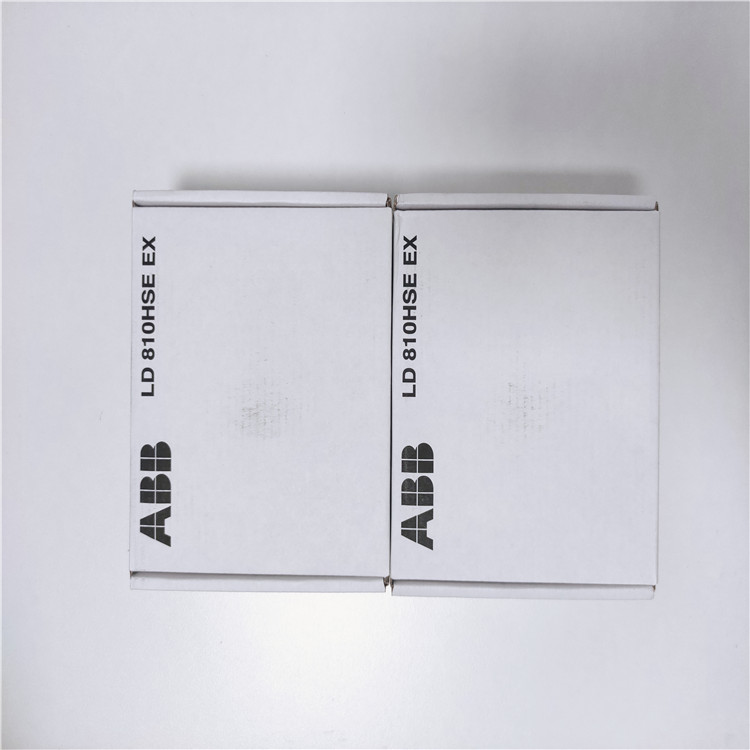

Fieldbus Linking Device LD 810HSE Ex V1.0

The FOUNDATION™ Fieldbus Linking Device LD 810HSE Ex is registered as class 42c of the HSE profile, therefore providing the following functions:
– It supports up to 4 separate FF-H1 links. In each of these links, the Linking
Device operates as Link Master as well as SM Time Publisher.
– Identification of devices connected to the H1 links
– Configuration of connected H1 devices through System Management and
Network Management via HSE
– Access to the function blocks of connected H1 devices via HSE
– Republishing of process data between H1 links
– Republishing of process data from H1 to HSE and vice versa
– Distribution of alarms and events sent by H1 devices

Functions The LD 810HSE Ex is a gateway between an FF High Speed Ethernet (FF-HSE) subnet and FF-H1 links. It supports device redundancy. The Linking Device meets protection class IP20 and is DIN rack mountable. It is powered by 24 V DC and supports Ethernet 10 Mbit/s or 100 Mbit/s.
